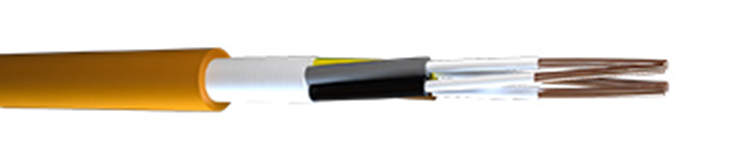

(N)HXH FE180 E30-E60-E90 Cable Copper Conductor XLSr Insulation 0.6/1kv

Product Categories
Minfeng Cable Group Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

(N)HXH FE180 E30-E60-E90 Cable Copper Conductor XLSr Insulation 0.6/1kv

  • 1
  • 2

Armor : Armored Or Unarmored

Delivery Time : 5-8 Days

Certification : ISO,CE,IEC,TUV,KEMA

Trademark : Minfeng Cable Group

Insulation : XLSr

Supply Ability : 100KM/Week

Installationenvironment : in all areas that require special protection of people and equipment against fire and fire damages and where strict security requirements must be fulfilled

Package : Wooden reel

Voltage Rating : 0.6/1kV

MOQ : 100m

Price : 0.1-5

Brand Name : Minfeng

Sheath material : PVC or PE

Core No : 1 or 3

Place of Origin : China

Model Number : (N)HXH FE180 E30-E60-E90

Payment Terms : L/C,T/T

Contact Now

Key attributes


Rated Voltage
0.6/1kv
Size
6-300mm2
Conductor Material
Copper
Insulation Material
XLSr
Working Temperature
5-50℃
Jacket
/
IP Level
/
Application
Industrial
Rated Current
/
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
(N)HXH FE180 E30-E60-E90
Brand Name
Minfeng
Product name
(N)HXH FE180 E30-E60-E90 Cable
Standard
VDE 0266
Conductor
copper
Insulation
XLSr
Nominal voltage
0.6/1kv
Product Description
(N)HXH FE180 E30-E60-E90 Cable Copper Conductor XLSr Insulation 0.6/1kv
(N)HXH FE180 E30-E60-E90 Cable Copper Conductor XLSr Insulation 0.6/1kv Application: Power cables 0.6/1 kV with intrinsic fire resistance are installed in all areas that require special protection of people and equipment against fire and fire damages and where strict security requirements must be fulfilled. Suitable for indoor applications. For outdoor applications, protection must be provided against exposure to direct sunlight. The cable should only be laid directly in earth or water if a protective conduit is used. Characteristics (properties): * Construction in line with DIN VDE 0266 and HD 604 S1 * Halogen-free, with improved fifire behavior * Insulation integrity FE180 in accordance with DIN VDE 0472-814, IEC 60331 * Circuit integrity E30-E60* in accordance with DIN 4102-12 Specifications Suitable as installation cable :Yes Standardization :VDE 0266 Conductor material :Copper Conductor surface :Bare Standardization conductor material :IEC 60228 Shape of conductor :Round Material core insulation :XLSr Conductor coding in accordance with HD 308 S2 Yes Material outer sheath Flame Retardant Halogen Free Polyolefin Compound Colour outer sheath Orange Flame retardant IEC 60332-1 / IEC 60332-3-22 Cat. A Halogen free IEC 60754-1 / IEC 60754-2 Low smoke IEC 61034-1 & IEC 61034-2 Circuit integrity DIN 4102 deel 12 (E60) Circuit integrity according to DIN 4102-12 E60 Permitted cable outer temperature during assembling/handling -5 / 50 °C Permitted cable outer temperature after assembling without vibration -45 / 90 °C Nominal voltage U0 0.6 kV Nominal voltage U 1 kV Test voltage 4 kV
Specification
Product
Number of cores
Diameter mm2
Outer sheath diameter [mm]
CU rate [kg/km]
Weight [kg/km]
Fire load [kWh/m]
Conductor
(N)HXH-0 FE180 E30-E60 1 x 6
1
6
7.6
58.6
112
0.23
solid
(N)HXH-0 FE180 E30-E60 1 x 10
1
10
8.4
96
156.3
0.27
solid
(N)HXH-0 FE180 E30-E60 1 x 16
1
16
9.8
154
227
0.34
stranded
(N)HXH-0 FE180 E30-E60 1 x 25
1
25
11.3
240
328.9
0.43
stranded
(N)HXH-0 FE180 E30-E60 1 x 35
1
35
12.4
336
428
0.48
stranded
(N)HXH-0 FE180 E30-E60 1 x 50
1
50
13.9
480
565
0.58
stranded
(N)HXH-0 FE180 E30-E60 1 x 70
1
70
15.7
672
772.8
0.68
stranded
(N)HXH-0 FE180 E30-E60 1 x 95
1
95
18.1
912
1034.3
0.91
stranded
(N)HXH-0 FE180 E30-E60 1 x 120
1
120
19.2
1152
1266.4
0.97
stranded
(N)HXH FE180 E30-E60 1 x 150
1
150
21.4
1440
1588.5
1.2
stranded
(N)HXH-0 FE180 E30-E60 1 x 185
1
185
23.6
1776
1957.9
1.46
stranded
(N)HXH-0 FE180 E30-E60 1 x 240
1
240
26.8
2304
2560.9
1.81
stranded
(N)HXH FE180 E30-E60 1x300
1
300
29.2
2880
3088.3
2.13
stranded
(N)HXH FE180 E30-E60 2 x 1.5
2
1.5
11
29
177.2
0.48
solid
(N)HXH FE180 E30-E60 2 x 1.5
2
1.5
11
29
177.2
0.48
solid
(N)HXH FE180 E30-E60 2 x 2.5
2
2.5
11.8
48
215.6
0.54
solid
(N)HXH FE180 E30-E60 2 x 2.5
2
2.5
11.8
48
215.6
0.54
solid
(N)HXH FE180 E30-E60 2 x 4
2
4
12.8
77
271.1
0.62
solid
(N)HXH FE180 E30-E60 2 x 6
2
6
13.8
115
334.4
0.7
solid
(N)HXH FE180 E30-E60 2 x 10
2
10
15.4
192
455
0.83
solid
(N)HXH FE180 E30-E60 2 x 16
2
16
18.2
307
660
1.09
solid
(N)HXH FE180 E30-E60 2 x 25
2
25
21.2
480
950
1.42
stranded
(N)HXH-J FE180 E30-E60 3 x 1.5
3
1.5
11.5
43
198.6
0.53
solid
(N)HXH-J FE180 E30-E60 3 x 1.5
3
1.5
11.5
43
200
0.53
solid
(N)HXH-J FE180 E30-E60 3 x 1.5
3
1.5
11.5
43
200
0.53
solid
(N)HXH-J FE180 E30-E60 3 x 2.5
3
2.5
12.4
72
247.6
0.6
solid
(N)HXH-J FE180 E30-E60 3 x 2.5
3
2.5
12.4
72
250
0.6
solid
(N)HXH-J FE180 E30-E60 3 x 2.5
3
2.5
12.4
72
250
0.6
solid
(N)HXH-J FE180 E30-E60 3 x 4
3
4
13.5
115
318.4
0.68
solid
(N)HXH-J FE180 E30-E60 3 x 6
3
6
14.6
173
399.8
0.77
solid
(N)HXH-J FE180 E30-E60 3 x 10
3
10
16.3
288
554.4
0.91
solid
(N)HXH FE180 E30-E60 3 x 16
3
16
19.3
461
804.8
1.19
stranded
(N)HXH FE180 E30-E60 3 x 25
3
25
22.6
720
1184.1
1.56
stranded
(N)HXH FE180 E30-E60 3 x 25 + 1 x 16
3
25+16
23.9
874
1357
1.73
stranded
(N)HXH FE180 E30-E60 3 x 35
3
35
24.9
1008
1528.7
1.8
stranded
(N)HXH FE180 E30-E60 3 x 35 + 1 x 16
3
35+16
25.9
1162
1693
1.93
stranded
(N)HXH FE180 E30-E60 3 x 50
3
50
28.2
1440
2026.3
2.24
stranded
(N)HXH FE180 E30-E60 3 x 50 + 1 x 25
3
50+25
29.9
1680
2311
2.52
stranded
(N)HXH FE180 E30-E60 3 x 70
3
70
32.7
2016
2813.1
32.7
stranded
(N)HXH FE180 E30-E60 3 x 70 + 1 x 35
3
70+35
34
2352
3146
3.07
stranded
(N)HXH FE180 E30-E60 3 x 95 + 1 x 50
3
95+50
39.3
3216
4287.5
4.18
stranded
(N)HXH FE180 E30-E60 3 x 120 + 1 x 70
3
120+70
42.6
4098.28
5255
4.74
stranded
(N)HXH FE180 E30-E60 3 x 150 + 1 x 70
3
150+70
46.6
4992
6361
5.63
stranded
(N)HXH FE180 E30-E60 3 x 185 + 1 x 90
3
185+95
52
6240
7950.7
6.99
stranded
(N)HXH-J FE180 E30-E60 4 x 1.5
4
1.5
12.4
58
232.8
0.61
solid
(N)HXH-J FE180 E30-E60 4 x 2.5
4
2.5
13.4
96
293.4
0.69
solid
(N)HXH-J FE180 E30-E60 4 x 4
4
4
14.6
154
380.6
0.78
solid
(N)HXH-J FE180 E30-E60 4 x 6
4
6
15.8
230
486
0.9
solid
(N)HXH-J FE180 E30-E60 4 x 10
4
10
17.8
384
687.9
1.07
solid
(N)HXH FE180 E30-E60 4 x 16
4
16
21.1
614
1003.1
1.4
stranded
(N)HXH FE180 E30-E60 4 x 25
4
25
24.8
960
1483.5
1.86
stranded
(N)HXH FE180 E30-E60 4 x 35
4
35
27.4
1344
1929
2.15
stranded
(N)HXH FE180 E30-E60 4 x 50
4
50
31.5
1920
2598.3
2.79
stranded
(N)HXH FE180 E30-E60 4 x 70
4
70
36.2
2688
3577.2
3.38
stranded
(N)HXH FE180 E30-E60 4 x 95
4
95
41.7
3648
4771.3
4.68
stranded
(N)HXH FE180 E30-E60 4x95
4
95
41.7
3648
4777.3
4.68
stranded
(N)HXH FE180 E30-E60 4 x 120
4
120
44.6
4608
5832.4
5.19
stranded
(N)HXH FE180 E30-E60 4 x 150
4
150
50
5760
7361
6.52
stranded
(N)HXH-J FE180 E30-E60 4 x 185
4
185
55.3
7104
9066
7.98
stranded
(N)HXH FE180 E30-E60 4 x 240
4
240
62.9
9216
11863
10.05
stranded
(N)HXH-J FE180 E30-E60 5 x 1.5
5
1.5
13.4
72
275.8
0.71
solid
(N)HXH-J FE180 E30-E60 5 x 2.5
5
2.5
14.5
120
349.7
0.81
solid
(N)HXH-J FE180 E30-E60 5 x 4
5
4
15.8
192
456.6
0.93
solid
(N)HXH-J FE180 E30-E60 5 x 6
5
6
17.2
288
583.7
1.05
solid
(N)HXH-J FE180 E30-E60 5 x 10
5
10
19.3
480
824.7
1.25
solid
(N)HXH FE180 E30-E60 5 x 16
5
16
23.1
768
1213.1
1.67
stranded
(N)HXH FE180 E30-E60 5 x 25
5
25
27.2
1200
1809.3
2.22
stranded
(N)HXH FE180 E30-E60 5 x 35
5
35
30.5
1680
2385.3
2.66
stranded
(N)HXH FE180 E30-E60 5 x 50
5
50
34.8
2400
3191.8
3.41
stranded
(N)HXH FE180 E30-E60 5 x 70
5
70
40
3360
4390.3
4.26
stranded
(N)HXH FE180 E30-E60 5 x 95
5
95
46.6
4560
5907.3
5.89
stranded
(N)HXH FE180 E30-E60 6x10
6
10
21
576
973
1434
solid
(N)HXH-J FE180 E30-E60 7 x 1.5
7
1.5
14.4
101
329.2
0.81
solid
(N)HXH-J FE180 E30-E60 7 x 2.5
7
2.5
15.6
168
422.9
0.92
solid
(N)HXH-J FE180 E30-E60 7 x 6
7
6
18.6
403
725
1.17
solid
(N)HXH-J FE180 E30-E60 12 x 1.5
12
1.5
18.3
173
496.7
1.2
solid
(N)HXH-J FE180 E30-E60 12 x 2.5
12
2.5
20
288
649.9
1.37
solid
(N)HXH-J FE180 E30-E60 19 x 1.5
19
1.5
21.2
274
703.6
1.63
solid
(N)HXH-J FE180 E30-E60 19 x 2.5
19
2.5
23.2
456
934.6
1.83
solid
(N)HXH-J FE180 E30-E60 24 x 1.5
24
1.5
24.6
346
881
1.99
solid
(N)HXH-J FE180 E30-E60 24 x 2.5
24
2.5
27
576
1173.7
2.27
solid
(N)HXH-J FE180 E30-E60 30 x 1.5
30
1.5
26
432
1040.8
2.28
solid
(N)HXH-J FE180 E30-E60 30 x 2.5
30
2.5
28.8
720
1430
2.68
solid
(N)HXH FE180 E30-E60-E90 Cable Copper Conductor XLSr Insulation 0.6/1kv
NO. OF CORES
NOMINAL CROSS
SECTIONAL AREA
mm2
NOMINAL
CONDUCTOR
DIAMETER
mm
NOMINAL
INSULATION
THICKNESS
mm
NOMINAL
INSULATION
DIAMETER
mm
NOMINAL
GRAPHITE
COATING
THICKNESS mm
NOMINAL
WEIGHT
kg/km
1
95
11.5
3.3
18.1
0.1
970
1
120
12.9
3.3
19.5
0.1
1200
1
150
14.5
3.3
21.1
0.1
1460
1
185
16
3.3
22.6
0.1
1800
1
240
18.5
3.3
25.1
0.1
2320
1
300
20.5
3.3
27.1
0.1
2900
1
400
23.6
3.3
30.2
0.1
3700
1
500
26.5
3.3
33.1
0.1
4700
