J-H(ST)Hh EIB Cable MSR Installation Cable with Static Screen Halogen-Free Copolymere 0.6/1 KV Rated Voltage

  • 1
  • 2

Conductor material : Copper

Model : J-H(ST)Hh EIB

Cable Type : Halogen-Free Power Cable

Operating Temp : 90 degree

Brand Name : Minfeng

Insulation Material : halogen-free copolymere

Rated Voltage : 0.6 / 1 KV

Manufacturer : Minfeng Cable

Price : 0.1-5

Delivery Time : 5-8 Days

Payment Terms : L/C,T/T

Place of Origin : China

MOQ : 100m

Certification : ISO,CE,IEC,TUV,KEMA

Cable Standard : DIN VDE 0815 DIN EN 60228 class 1

Model Number : J-H(ST)Hh EIB

Sheath : halogen-free copolymere

Supply Ability : 100KM/Week

Contact Now

J-H(ST)Hh EIB Cable MSR Installation Cable with Static Screen European Installation Bus Halogen-Free Power Cable
J-H(ST)Hh EIB Cable MSR Installation Cable with Static Screen European Installation Bus Halogen-Free Version designed for industrial applications requiring reliable data transmission and power distribution.
J-H(ST)Hh EIB Cable MSR Installation Cable with Static Screen Halogen-Free Copolymere 0.6/1 KV Rated Voltage
Key Specifications
Rated Voltage 0.6/1kV
Size 0.8mm²
Conductor Material Copper
Insulation Material Halogen-free copolymere
Working Temperature 5-50℃
Jacket Halogen-free copolymere
Application Industrial
Type Low Voltage
Place of Origin Hebei, China
Model Number J-H(ST)Hh EIB
Brand Name Minfeng
Standard DIN VDE 0815 DIN EN 60228 class 1
Applications
For installation on and under plaster in dry, humid and wet rooms as well as outside (by protected installation) in strongly and weak stream arrangements. Functions as BUS cable (EIB-installation bus) and as MSR cable in strong stream arrangements. Primary applications include measurement value transfer, process data processing, and use in control technology and automation systems.

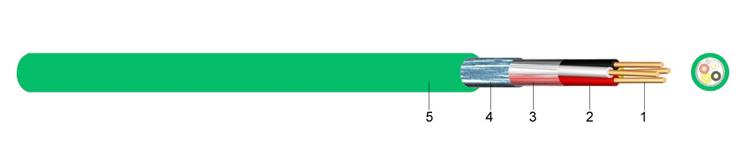

Construction
  • Solid bare copper conductor
  • Core insulation of halogen-free copolymere
  • Layer of plastic foil
  • Static screen of plastic laminated aluminium foil with drain wire
  • Outer sheath of halogen-free copolymere, green or grey
Information: Cores twisted to starquads. According to DIN VDE 0815 (core identification) and DIN EN 60228 class 1 (construction) EIBA specification.
Technical Data
Peak Operating Voltage 300 V
Temperature Range -5°C to +50°C
Conductor Resistance (max) 73.2 Ohm/km
Insulation Resistance (min) 100 MOhm/km
Mutual Capacitance at 800 Hz (max) 100 nF
Test Voltage Core/Core 5 min. 1 KV
Test Voltage Core and Screen 1 min. 4 KV
Flammability Standard EN 50266-2-4, IEC 60332-1
Specifications
Number of pairs and nominal conductor diameter mm Copper figure kg/km Overall diameter appr. mm Calorific potential kWh/m Weight appr. kg/km
2 x 2 x 0.8 21 8.5 0.22 60
